1.Control IC SK6812/ws2812b muab tso rau hauv 5050 RGB LED diode, txhawb ntau xim- hloov teebmeem .black PCB xaiv tau. 2.Nws los hauv ib thooj sib cais los ntawm 3Pin JST SM connector thiab ntxiv Hwj chim / av Hlau. 3. Cov khoom siv PCB yooj yim. Cov matrix no muaj ib tug tuab saj zawg zog PCB thaub qab uas yuav maj mam khoov thiab nkhaus nyob ib ncig ntawm qhov chaw 4.Qhov no matrix nrog 256 leds, koj tuaj yeem siv dhau 15A ntawm tam sim no yog tias koj tig rau tag nrho cov LEDs rau dawb (uas peb yeej tsis pom zoo vim peb tsis xav tias flex PCB tuaj yeem tswj tau qhov tam sim no ntev heev. ). Sim ua kom qhov kos tam sim no qis dua 5A. 5.Cov no yog qhov txaus 88 tus kheej qhov chaw nyob RGB matrix panels. Tsim los ntawm 8 kab x 8 kab ntawm WS2812B (WS2812 / WS211 raws tu qauv) ib tus zuj zus tuaj yeem nyob ntawm LEDs ntawm ib lub PCB hloov tau, cov vaj huam sib luag no muaj 64 LEDs thiab lawv tuaj yeem ua daisy- chained los ua cov cim loj lossis cov vaj huam sib luag! Koj tuaj yeem tsim cov yeeb yaj kiab, ua si, lossis txawm muab lawv tso rau hauv kev lom zem e-txoj haujlwm textiles. Nyob rau sab saum toj ntawm txhua yam, ua tsaug rau nws qhov hloov pauv hloov pauv, LED Matrix no tuaj yeem khoov thiab hneev kom haum rau yuav luag txhua qhov chaw curvy. 6.These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 3.8A in most uses (3.8A if all LEDs are set to bright white, which is NOT recommended). Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V plus , COM-, DAT, and GND. 7.Pls nco ntsoov tias WS2812B txawv me ntsis ntawm tus qauv WS2801 ICs, cov no tsis siv cov moos sib cais thiab cov ntaub ntawv kab.
Xa kev nug
Hauj lwm lawm

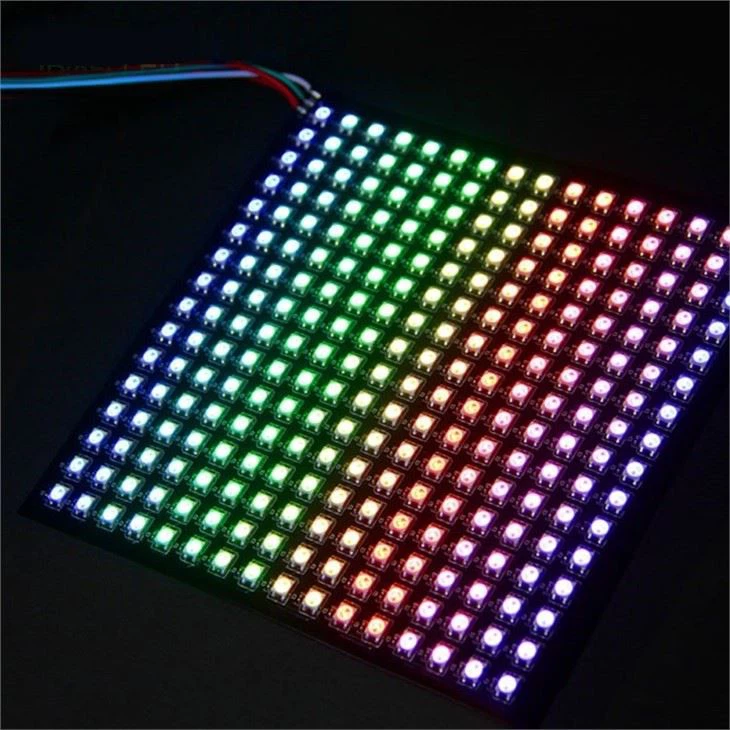

1616 WS2812B LED Matrix
Khoom Parameter:
Emitting xim
pixel RGB, IC WS2812
Ua haujlwm voltage
DC 5 V
Hwj chim
0.3W/pixel
qib waterproof
Non-waterproof
Hom kev ua haujlwm
External controller Arduino tau tshaj.
Kev sib txuas
VCC: RED; GND: dub; DAT: BLUE
Peb qhov loj
88, 64 hlm., 8 cm;1632, 256 leds, 16 cm 16 cm;832, 256 leds, 8 cm 32 cm
Nta:
1. WS2812B hloov tau LED matrix-16x16 pixels.
2. Nws yooj yim heev los ntxiv cov ntawv thaum txhua tus tswj hwm tus kheej.
5. These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 5A in most uses(15A required wen you set all LEDs in white color).
6. Muaj ob lub 3-pin JST SM connectors thiab ob pcs liab qab fais fab cables.
